Logitech Tap Room Solution for Microsoft Teams - Medium

Product description

Logitech Tap Room Solution - Teams Certified

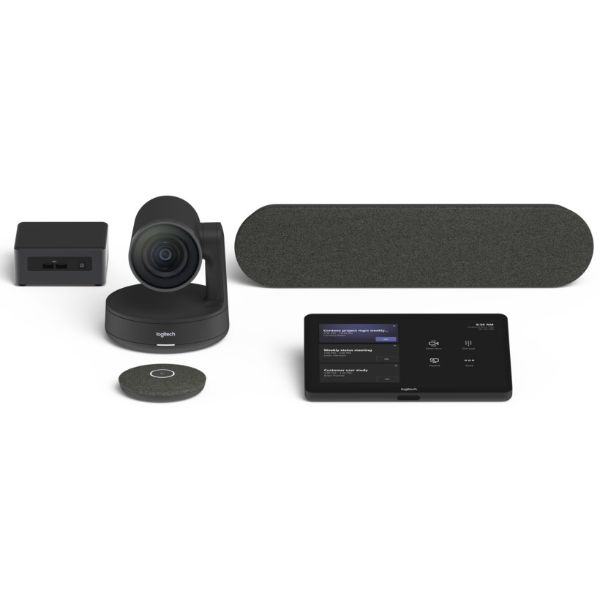

Logitech's complete video conferencing solution consists of a Logitech Tap controller, Logitech Rally System and NUC. With all these devices, you can enjoy truly simple, high-quality meetings.

Ultra-HD imaging system and automatic camera control

The Rally camera produces clear video, extraordinary color, and exceptional optical precision with resolutions of up to 4K.

The Rally camera produces clear video calls, extraordinary color, and exceptional optical precision with resolutions of up to 4K.  Higher quality and privacy will provide a much more comfortable experience.

Stunning image

If there is one thing that stands out from one good quality video conference to another, it is the quality of its image. With this 4K video device, you will have spectacular image quality. It ensures sharpness with up to 4K resolution, 5x optical zoom that focuses on the speaker, and panning that works with autofocus. The Rally Bar adapts to the needs of each room like a visual assistant.  for your video conferences.

Logitech RightLight technology optimizes the balance of light to highlight faces. This technology presents natural skin tones, even in dim or backlit conditions.

The Rally camera is equipped with advanced optical and revolutionary features. This offers superior performance whatever the size or shape of a meeting room.

Suitable for any environment

The Rally camera is equipped with superior-quality components and a 4K sensor, suitable for any professional environment. The camera has a matte black finish with grey molding. It can be placed on a table, tripod, or wall using the included mount.

The ultimate audio experience

The Logitech Rally Speaker is designed to fill larger rooms with clear audio and makes speech easy to understand. It is equipped with RightSound™ technologies that virtually eliminate distortion, clipping, and vibration. The Rally Speaker ensures voices are heard whilst maintaining comfortable volume levels throughout the room.

Dedicated Microsoft Teams solution

Certified and dedicated to Microsoft Teams, this solution allows you to easily launch your virtual conferences. Its unique Ethernet connection system allows for quick set-up, while the cable retention and pull systems help reduce clutter, and the Ethernet cord is completely hidden from view.

Easy mounting and display

With mounting hardware and wiring certified for in-wall mounting for a variety of room layouts and sizes, Logitech Tap standardises the user experience across all rooms. Add a wall-mount piece to save space in small rooms. Optimise cable routing and display angle with a tabletop or riser mount. The new Logitech Strong USB cable allows Tap to be placed up to 25 metres away from the meeting room computer. With its large 10.1" touchscreen, elegant casing and high-quality design innovations, Logitech Tap blends seamlessly into the modern workplace.

Features:

Logitech TAP:

• 10" (25cm) touch screen
• 1280 x 800-pixel resolution
• Anti-glare screen
• 14° display angle
• Ports and interfaces: USB-C, USB-A, HDMI input, 3.5mm jack
• System requirements: Windows 10 or Chrome OS
• Cabling package for Logitech Tap consisting of:
• Logitech Tap receiver
• One dongle receiver
• 100-240V power supply with international adapters
• Two CAT5E cables: one 2.97m and one 7m
• Product dimensions: 58 x 244 x 179mm
• Weight: 1.25kg
• Warranty: 2 years

Features:

Logitech Rally Camera:

• Ultra-HD imaging system supports:
• 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
• 1080p, 720p at 30fps and 60fps
• Smooth motorized pan, tilt, and zoom
• Pan: ±90°
• Tilt: +50° / -90°
• 15x HD zoom
• Field of View:
• Diagonal: 90°
• Horizontal: 82.1°
• Vertical: 52.2
• Autofocus
• 3 camera presets
• Kensington security slot
• Video mute/unmute LED indicator
• Standard tripod thread
• Lens parks at -90° in sleep mode for assured privacy
• RALLY MIC POD
• Pickup range: 4.5m diameter
• Four omnidirectional microphones forming eight acoustic beams
• AEC (Acoustic Echo Cancellation)
• VAD (Voice Activity Detector)
• Background noise suppression
• Mute button with LED status indicator
• Captive 2.95m 12-pin cable
• Daisy chain up to 7 Rally Mic Pods
• Frequency response: 90Hz – 16kHz
• Sensitivity: >-27dB +/-1dB @ 1Pa
• Microphone data rate: 48 kHz

Recommended # of participants:

• Rally (one Mic Pod): 10
• Rally Plus (two Mic Pods): 16
• Additional participants per Mic Pod: 6
• Recommended participants for Rally with 7 Mic Pods: 46

Logitech Rally Speaker:

• High-performance 3" (76mm) driver with a rare-earth magnet
• Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
• Mini XLR cable connects to Rally Display Hub for both signal and power
• Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter
• Sensitivity: 95+/-2dB SPL at ½ meter
• Distortion: 200Hz–300Hz < 2.5%, 300Hz–10kHz < 1%@7.5W
• Speaker sampling rate: 48 kHz

Logitech Rally Mic:

• Pickup range: 4.5m diameter
• Four omnidirectional microphones forming eight acoustic beams
• AEC (Acoustic Echo Cancellation)
• VAD (Voice Activity Detector)
• Background noise suppression
• Mute button with LED status indicator
• Captive 2.95m 12-pin cable
• Daisy chain up to 7 Rally Mic Pods
• Frequency response: 90Hz – 16kHz
• Sensitivity: >-27dB +/-1dB @ 1Pa
• Microphone data rate: 48 kHz
• Recommended # of participants:
• Rally (one Mic Pod): 10
• Rally Plus (two Mic Pods): 16
• Additional participants per Mic Pod: 6
• Recommended participants for Rally with 7 Mic Pods: 46
