Logitech MeetUp

Product description

Suitable for Huddle spaces and small conference rooms

Extraordinary visual capabilities

The Logitech MeetUp 4K is designed for small conference and huddle rooms, with an ultra-wide 120° field of view you can be sure everyone will be seen.

Also using RightSight™ computer vision, the Logitech MeetUp conference automatically adjusts camera position and zoom to find and frame people in the room. Unlike voice tracking systems that jump from person to person, RightSight frames everyone in the conversation for a more comfortable and collaborative conferencing experience, even at wide angles.

The Logitech Meetup conference camera also features a x5 Zoom. This frames presenters perfectly, minimizing background distractions and ensuring the delivery of great image quality. You can zoom in on whiteboards and objects so remote participants can see what you see. Thanks to the Logitech Meetup camera's advanced 4K image sensor, video remains sharp and clear, even when you zoom in on the details.

Premium camera technology

The MeetUp Logitech features exquisitely engineered, premium camera optics that capture a wide field of view without distorting faces and furniture with a “fisheye” effect. Faces look natural, whiteboard writing remains legible, and straight lines stay straight.

Outstanding audio quality

With Full-Duplex & Advanced Beamforming Front-of-room alignment of voice and video is just the first step to natural conversations. RightSound™ technologies include a beamforming mic array that captures speech, while auto-leveling louder and software voices and suppressing noise.

Extend your audio range

The Logitech Expansion Mic for the Logitech MeetUp video conferencing system provides greater flexibility in huddle rooms. The camera angles and view have been thought for meeting spaces. To extend the already impressive 4m range you can add an expansion that allows you to increase that range up to 5 meters. So, whether people are seated at a table, against the wall, or walking around the room, the Expansion Mic for Logitech MeetUp means everyone will be heard.

Bluetooth speakerphone

If you have already dialed into a meeting on your smartphone, pair the Logitech MeetUp bar with your Bluetooth device to enjoy outstanding audio clarity, and volume. A range that handheld devices can’t match.

Helping you save space

Mounted under your display like a soundbar, the  Logitech MeetUp software takes the conference cam off the table reducing messy cabling. The Logitech Meetup 4K conference cam maximizes your usable space in your Huddle or small meeting room space.

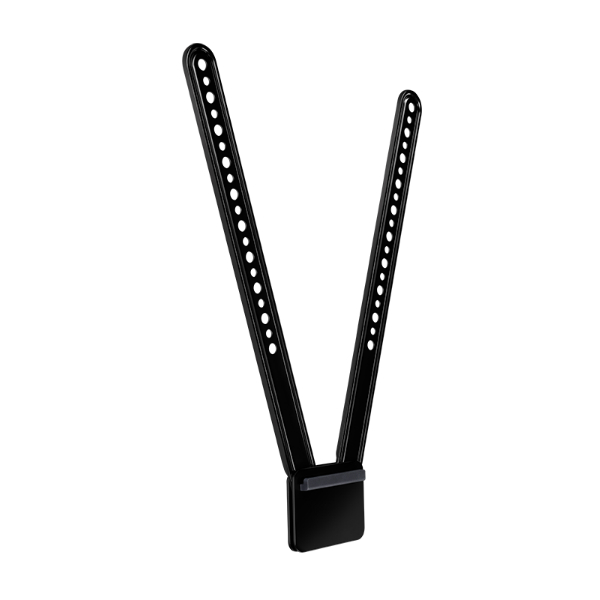

With the optional Table Stand, Wall Mount, or TV Mount you can place the unit wherever you require. By attaching the optional VESA mounting points behind the display, the TV Mount for Logitech MeetUp lets you position it above or below the display without drilling new holes.

Take control

When you need to adjust the volume, mute the microphone, or take control of the camera position. The Logitech MeetUp’s remote control allows for reliable and discreet adjustments from anywhere in the room. You can even download the free Logi Remote app (available on iTunes) to control your Logitech MeetUp with an iPhone or iPad.

With Logitech Sync Device Management software you can also support the Logitech MeetUp in all of your rooms while minimizing site visits and trouble tickets—all from a simple browser-based interface.

Learn more about Logitech Sync

How do I set up Logitech MeetUp?

Set up of the Logitech camera Meetup is straightforward as demonstrated in the video below.

Dimensions

Main unit

• Height x Width x Depth: 4.1 in (104 mm) x 15.75 in (400 mm) x 3.35 in (85 mm)
• Weight: 2.3 lbs (1.04 kg)

Remote Control

• Height x Width x Depth:
• 3.25 in (83 mm) x 3.25 in (83 mm) x 0.375 in (10 mm)

Rightsense Technologies

RightLight:

• Low-light compensation
• Video noise reduction
• Low-light saturation optimization

RightSight:

• Human figure detection
• Auto-frame participants at the meeting start
• Auto-frame participants on-demand
• Auto-reframe when participants enter, leave, or change positions

RightSound:

• Machine learning AI trained to distinguish human speech from other sounds
• AEC (Acoustic Echo Cancellation)
• VAD (Voice Activity Detector)
• Background noise suppression
• Auto-level loud and soft voices
• Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion
• Anti-vibration enclosure

Compatibility:

• Windows® 7, Windows 8.1, or Windows 10
• macOS® 10.10 or higher
• USB 2.0 port (USB 3.0 port and cable required for 4K video)
• Plug-and-play USB connectivity
• Certified for Skype™ for Business and ready for Microsoft Teams
• Zoom™ Certified
• Fuze™ Certified
• Certified for Google Hangouts Meet Hardware
• Microsoft Cortana®
• Cisco Jabber®
• Compatible with BlueJeans, BroadSoft™, GoToMeeting™, Vidyo™, and other video conferencing, recording, and broadcasting applications that support USB cameras

Technical Specifications:

Camera:

• Custom Logitech lens with 5x HD zoom and motorized pan (+/- 25°) and tilt (+/- 15°)
• Field of view: Diagonal: 120°, Horizontal: 113°, Vertical: 80.7°
• Total Room Coverage (field of view + pan and tilt): 163° wide x 110° tall
• 3 camera position presets
• RightSight auto-framing (requires Windows 10 64-bit; macOS coming soon)
• Video performance:
• 4K Ultra HD video calling (up to 3840 x 2160 pixels @ 30 fps with customer-supplied USB 3.0 cable)
• 1080p Full HD video calling (up to 1920 x 1080 pixels @ 30 fps)
• 720p HD video calling (up to 1280 x 720 pixels @ 30 fps)

Microphone:

• Pickup Range - MeetUp: 4 meters (13.1 feet)
• With optional Expansion: 5 meters (16.4 feet)
• Sensitivity: -27dB
• Microphone frequency response: 90Hz – 16kHz for full voice reproduction and high intelligibility without noise
• Beamforming performance: Factory-paired, very low distortion broadside beamforming algorithm steers the pickup range directly at the speaker for the best voice pickup and noise reduction
• AEC (Acoustic echo cancellation)
• VAD (Voice activity detector)
• Background noise suppression
• 32 kHz sampling rate
• Recommended # of participants: 6
• Recommended # of participants with expansion mic: 8

Speaker:

• Volume adjustable to 95 dB SPL at 1/2-meter peak
• Speaker sensitivity 86.5+/-3dB SPL at 1/2 meter
• Distortion: 200 Hz – 300Hz < 3%, 3000 Hz -10KHz < 1%
• Patent-pending anti-vibration enclosure improves voice clarity while limiting sound transmission to adjacent spaces

Additional Information:

• Main unit and accessory color - Black
• Bluetooth® wireless technology
• RF remote control
• Integrated table/wall mount; optional TV mount available
• Kensington security slot
