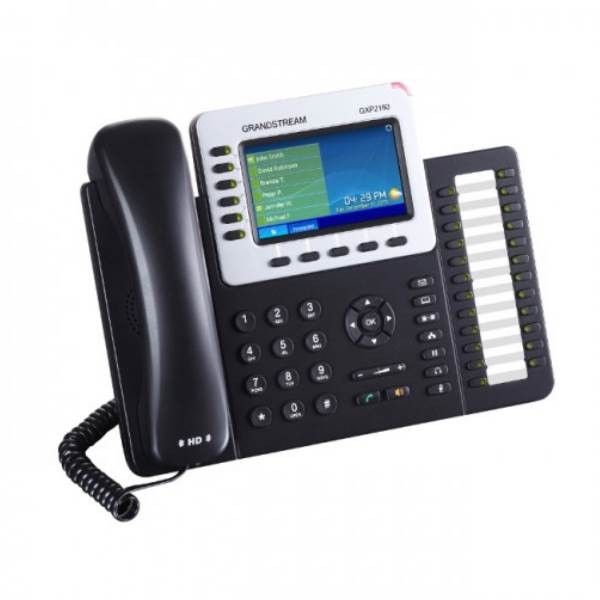

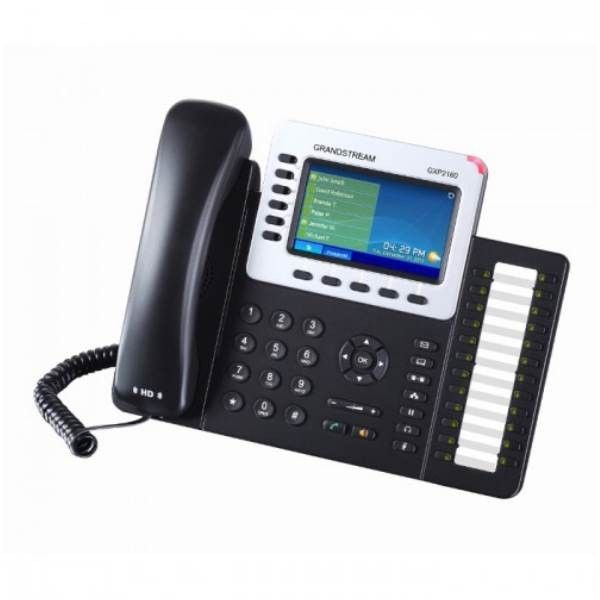

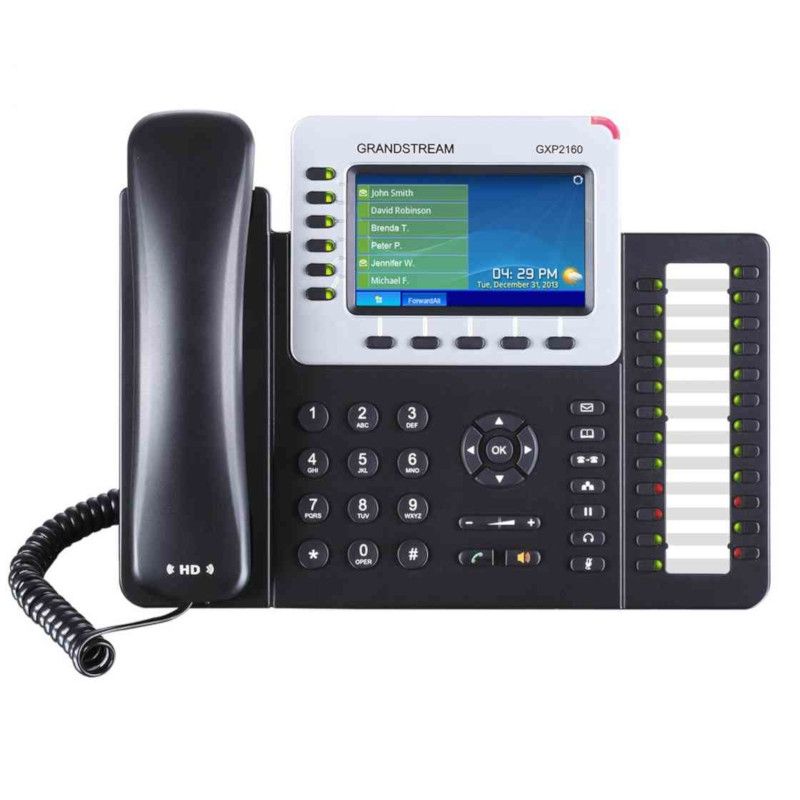

Grandstream GXP2160

Product description

The winner for Executives and Receptions

The Grandstream GXP2160 is a powerful Linux-based enterprise-grade VoIP phone for up to 6 SIP lines with a large colour display and a wide range of functions.

User-friendly with advanced functionality

Not only is the GXP2160 easy to use, but its performance is unbeatable. Its 4.3" TFT colour LCD screen has the look of a mobile phone screen and makes browsing the feature rich menu a breeze. With built-in Bluetooth, users can sync their mobile contacts and calendar and work hands free with a Bluetooth headset. It even allows users to transfer calls between their GXP2160 and mobile phone. It also supports an EHS cable, for users to connect a traditional cordless headset.

Quick access increasing your productivity

The Grandstream GXP2160 offers 24 dual-colour BLF/extension keys providing quick and easy access to up to 24 contacts, making it an ideal choice for executives and receptionists who handle large numbers of calls. 5 programmable context-senstive line keys and integrated real-time web applications are also features that make this phone a winner.

Crystal-clear audio quality

With dual Gigabit network ports and built-in PoE, network speeds are maximised up to 1000mb per second, ensuring that calls are as clear as possible and pages load as quickly as possible, while HD audio ensures crystal clear call quality, both on the handset and speakerphone.

Compatible with most SIP providers

The GXP2160 VoIP Phone is interoperable with all major SIP providers, so compatibility is no problem. Other features of this advanced phone include 5-way conferencing, state-of-the-art encryption and the option of connecting up to 4 GXP2200 extension modules to offer quick and easy access to up tp 160 speed dials and monitor the call status of extensions.

Features:

• Protocols: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6
• Integrated Power-over-Ethernet (802.3af)
• Bluetooth V2.1
• Network interface: dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
• RJ9 headset jack
• USB, extension module port
• Display: 4.3 inch (480x272) TFT color LCD
• 6 line keys with up to 6 SIP accounts, 5 programmable context sensitive softkeys, 5 navigation/menu keys,
• 11 dedicated function keys for: Message (with LED indicator), Phonebook, transfer, conference, hold, headset, mute, send/redial, speakerphone
• Volume +/-
• Support for G.729A/B, G.711μ/a-law, G.726, G.722 (wide-band), in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
• Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA)
• Bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting,
• Call log (up to 500 records)
• Customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over
• Weather, currency, news
• GMI available for advanced custom application development (pending)
• HD Audio on handset and speakerphone
  2 angle positions on base stand
• Wall mountable
• Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file
• Languages: English, Arabic, Chinese, Croatian, Czech, Dutch, German, French, Hebrew, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenia, Spanish, Turkish
• Temperature: 0 ~ 40ºC (32 ~ 104ºF ), 10 ~ 90% (non-condensing)
• Compliance: FCC Part 15 (CFR 47) Class B; EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN 60950-1, EN62479, AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, RoHS; UL 60950 (power adapter)
• Security: User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control
• Universal power adapter included: Input: 100-240V; Output: +12V, 1.0A;
• Max power consumption: 6W (without GXP2200EXT), 10W(with 4 cascaded GXP2200EXTs )
• Dimensions: 275.5mm (W) x 206mm (L) x 46.5mm (H);
• Unit weight: 0.98kg; Package weight: 1.62kg
