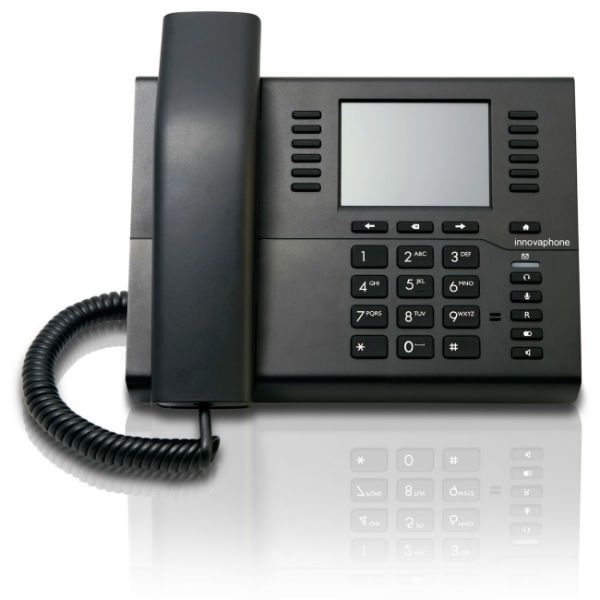

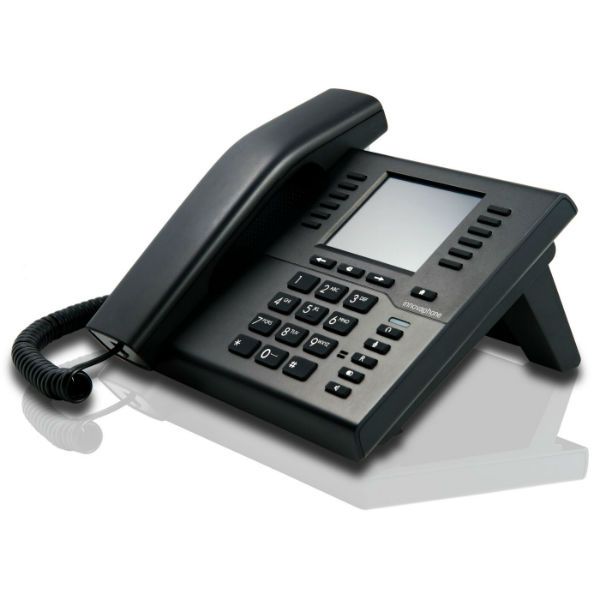

Innovaphone IP111

Product description

IP desk phone with color screen and possible wall mounting

The innovaphone IP111 is an ideal desktop IP telephone for both office environments and wall mounting. Equipped with a color screen, 16 dynamic function keys and 32 partner keys with information on presence and activity status, allowing you to take full advantage of the new concept of intuitive operation. The IP111 also offers the latest IP telephony and Unified Communications functions.

Useful features for easy communication

With very practical features, such as the internal search function and dialing by name, multiple registrations (up to 6 users), the "announce" function (only for authorized users) and a variety of functions that will make your communication more efficient, such as conference with three parties, the redirection and transfer of calls or calls on hold. You can also make handsfree calls.

Power over Ethernet

Thanks to the power supply via Ethernet (POE), the device requires only one cable. An integrated Ethernet switch enables the connection of a computer or network device to the local network.

Features:

Case

• Color display, 320 x 240 pixels
• keyboard
• 2 x 6 dynamic function keys
• 9 Special keys
• Dimensions: 21 x 15.5 x 3.5 cm (basic)
• Weight: approx. 630 g.

Interface

• 2 x Fast Ethernet (100 Mbit / s): RJ 45 "Power over Ethernet" interface according to the 802.3af standard and "Energy Efficient Ethernet" according to the 802.3az standard
• Port for power supply

Hardware

• Power supply: external power supply: 12 V, 6 W
• Power over Ethernet according to 802.3af standard, class 1
• Operating temperature: from 0 ° C to +45 ° C,
• Storage temperature: from -10 ° C to 70 ° C
• Humidity of the air: from 10% to 90%

Admin

Features

• Display in 19 languages (expandable)
• Representation of international characters (UTF-8)
• Internal search function and dial by name
• Connection of databases compatible with LDAP
• Partner keys with information about attendance and activity status
• Partner keys with external PBXs via SIP federation
• "Advertise" function, only for authorized users
• Multiple registration for up to 6 users
• Call back if the user is not answering / busy
• Announcement of message
• hands free
• Mute, spontaneous microphone deactivation
• Conference up to three, also with external users
• Log in and log out for group conversations
• General or specific recording of calls from other users
• Lock and unlock via PIN
• Call diversion: permanent, occupied user, user does not respond
• DTMF tone generation / recognition
• Transfer call with / without consultation
• Call waiting with music on hold
• Transmission user name during signaling
• Call waiting with incoming call signaling for the user
