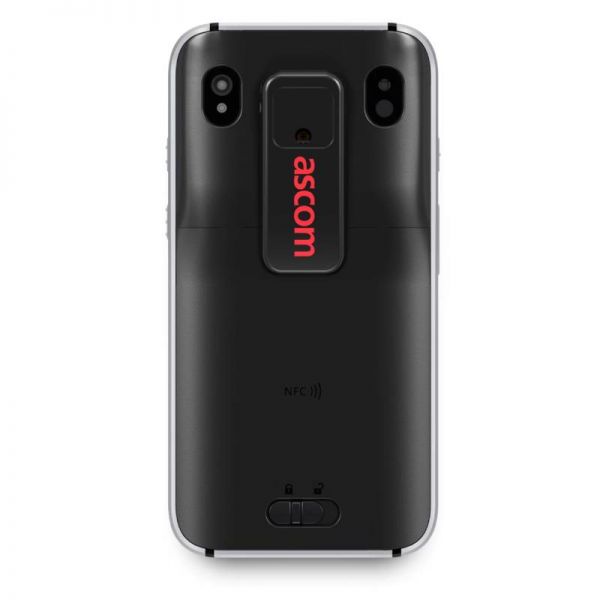

Ascom Myco 3, Wi-Fi EU

Product description

The Ascom Myco 3 delivers enterprise-grade Wi-Fi for secure connectivity with seamless roaming, providing smooth collaboration across entire wireless networks. Additional Myco 3 variants, that combine either DECT or LTE technologies, are well suited for larger, more complex or even multi-site facilities. And as an Android Enterprise Recommended rugged device, Ascom Myco 3, gives hassle-free access to the world's largest app ecosystem.

Optimized interaction with information

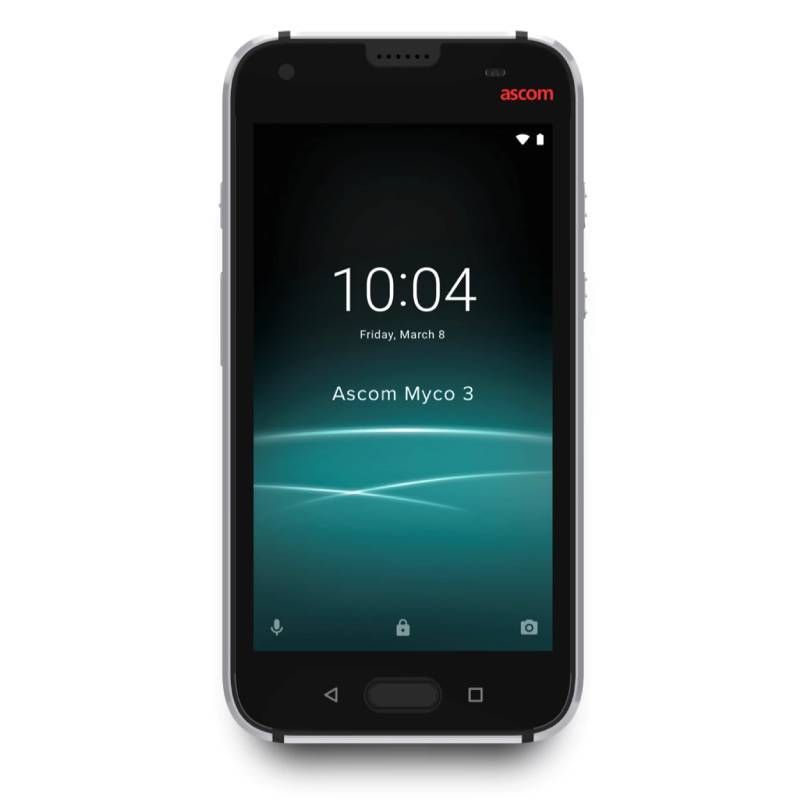

The Ascom Myco 3 features a 5” multi-touch display in full HD for optimal interfacing and management of alerts, messages and visual data. Sound quality is exceptional, thanks to wideband audio and noise and echo cancellation—critical for noisy workplaces.

Continuous power for continuous performance

The Ascom Myco 3 features a powerful octa-core processor to support smooth multitasking. While its true hot-swappable battery helps maximize uptime and productivity—no need to power down or exit apps when changing batteries.

Promoting staff safety

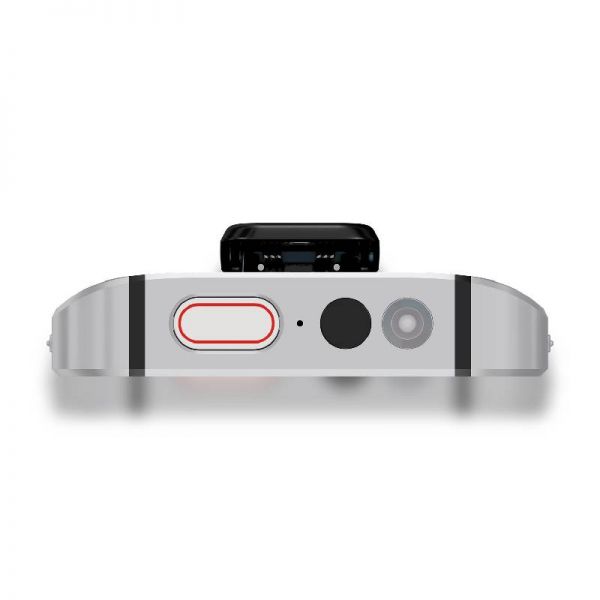

An alarm button on the top of the handset lets staff quickly trigger a distress alert. The Ascom Myco 3 features “man-down” and “no-movement” alarms that automatically sends alerts that include the phone's location.

Tools for safety and efficiency

Distress alerts sent from the Myco 3 include the phone’s location with room-level accuracy. Can also automate tasks based on a user’s location, such as automatically cancelling an alarm notification when brought into a room. The integrated barcode scanner enables secure ID verification (of patients, medications, controlled substances, etc.).

Overview
Operating System: Android™ 10 Pie
CPU: 2.3/1.8 GHz Octa-core
Internal memory: 4 GB RAM, 64 GB Flash
Supported networks: Wi-Fi
Browser: HTML
Dimensions: 150 x 76 x 14/16 mm, 5.90’’ x 2.99’’ x 0.55/0.63’’
Weight: 239 g / 8.43 oz.
Cover: Aluminum chassis
Color: Black
IP rating: IP67, dust and liquid resistant
SIM: Nano SIM
Buttons: Power button, volume button (up/down), home button, back button, overview button, 3 configurable multifunction buttons
Available languages, Ascom specific: Danish, Dutch, English, Finnish, French, German, Italian, Norwegian, Portuguese, Portuguese (Brazil), Russian, Spanish, Swedish. Supported Android languages: approx. 60
Sensors: NFC, three-axes accelerometer, three-axes gyroscope, proximity sensor, light sensor, Ascom IR location.

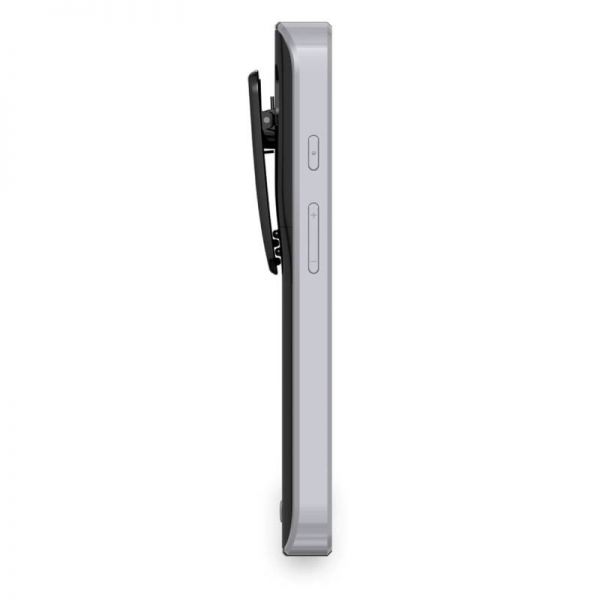

Clip: Removable carrying clip
Ports
USB: Micro USB v2.0 or higher (charging and data transfer/configuration)
Audio: 3,5 mm headset jack

Display
Type: TFT LCD, Deca capacitive touchscreen
Size: 5’’
Resolution: 1920 x 1080 (FHD)
Protection: Corning® Gorilla® Glass 3

Scanner
Professional barcode scanner supporting 1D, 2D and Postal Codes

Security support
Ascom Myco 3 is updated with Android security patches every quarter for five years from the date of its launch.

Indications
Multi-color LED
Vibration
Ringtones
Message beeps
Notification Sounds

Communications
WLAN: IEEE 802.11 a/b/g/n/ac
Bluetooth 4.1
GNSS: A-GPS; GLONASS
NFC: NFC Forum Type 1-5
DECT Frequency: 1880-1930 MHz

Camera
Flash (can be also used as flashlight)
Auto Focus
Front-facing Camera Resolution: 2592 x 1944 pixels (5 Megapixels)
Rear-facing Camera Resolution: 4160 x 3120 pixels (13 Megapixels)

Cellular bands
LTE : FDD B1, B3, B5, B7, B8, B20
LTE : TDD B38, B40, B41
3G: WCDMA (B1, B5, B8)
GSM: 850/900/1800/1900
