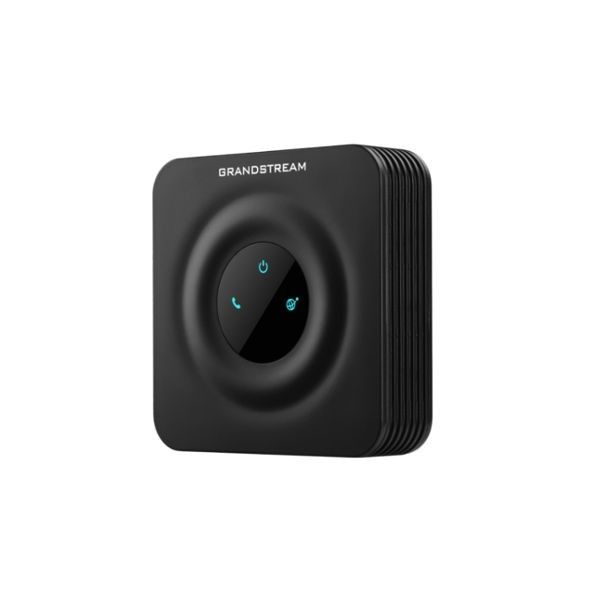

Grandstream HT801 ATA Adapter
Internal ref: GRAHT801UK // Manufacturer part #: HT801
Powerful analog telephone adapter that is easily deployable and managable.
4.8 of 6 Reviews
£39.99
£47.99
Incl. VAT
Bulk orders, request a quote now!
2 years of manufacturer warranty Subject to manufacturer conditions
Pay in 3 interest-free payments of £16.00
Show more
Key features
- Supports 1 SIP profile
- TLS and SRTP security encryption technology to protect calls and accounts
- Automated provisioning options include TR-069 and XML config files
- Supports 3-way voice conferencing
- Supports T.38 Fax for creating Fax-over-IP
- Supports a wide range of caller ID formats
- Supports advanced telephony features, including call transfer, call forward, call-waiting, do not disturb, message waiting indication, multilanguage prompts, flexible dial plan and more
Product description
Grandstream HT801 ATA Adapter
The Grandstream HT801 ATA Adaptor delivers powerful VoIP technology and routing capabilities to home and office environments, and allows users to successfully connect their analog devices to a manageable and powerful VoIP network.
Built upon Grandstream’s market-leading SIP ATA/gateway technology, with millions of units successfully deployed worldwide, this powerful ATA features exceptional voice quality in various applications and environments. The HT801 comes with 1 easy-to-use FXS ports, state-of-the-art encryption with a unique security certificate per unit, automated provisioning for volume deployment and device management and outstanding network performance.
Features:

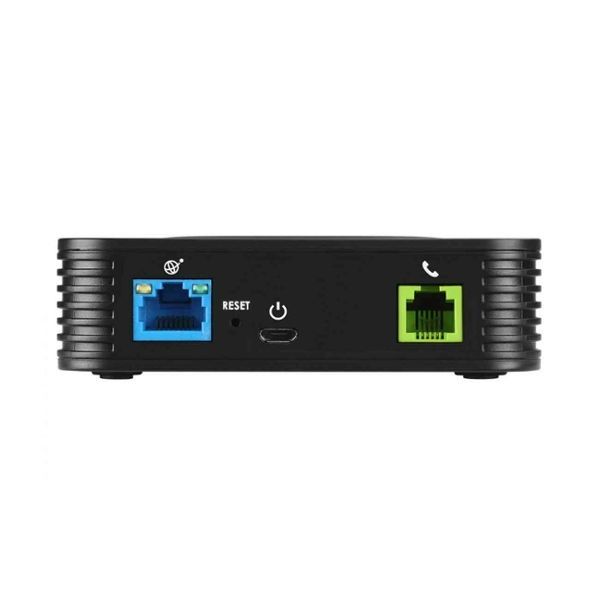

- One (1) FXS port
- One (1) 10/100Mbps auto-sensing ethernet port (RJ45)
- LED Indicators
- Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
- G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
- T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
- 5 REN: Up to 1km on 24 AWG
- Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
- Busy Tone, Polarity Reversal/Wink, Loop Current
- In-audio, RFC2833 and/or SIP INFO
- HTTP, HTTPS, SSH, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog
- Syslog support, SSH, remote management using web browser
- Input: 100-240VAC, 50-60Hz
- Output: 5.0VDC/1.0A
- Dimensions: 100mm x 100mm x 29.5mm
- Weight: 102 g
Files
Data sheet
Product Specs.
| Manufacturer part # | HT801 |
|---|---|
| EAN | 6947273702269 |
| Warranty | 2 years |
| Is Accessory of | Phone - Corded |
Similar products compare
 EPOS Battery Lid for DW Pro1 £4.99 £5.99 Incl. VAT |  EPOS Battery Lid for DW Pro2 £4.99 £5.99 Incl. VAT | |
| Reference | SECOUVDWMB | SECOUVDWPRO2 |
| Manufacturer | EPOS / Sennheiser | EPOS / Sennheiser |
Similar products compare
| EPOS Battery Lid for DW Pro1 £4.99 £5.99 Incl. VAT | EPOS Battery Lid for DW Pro2 £4.99 £5.99 Incl. VAT | |
| Reference | SECOUVDWMB | SECOUVDWPRO2 |
| Manufacturer | EPOS / Sennheiser | EPOS / Sennheiser |
Product Reviews
Chuck
Posted 08/07/2024
Collected via Trustpilot
I like this adaptor. It works well and is reasonably priced. Grandstream is an American company but the device is manufactured in China. The web interface, particularly when accessed by https, is slow and clunky. It has a particularly annoying habit of asking you if you want to update the admin password stored in your keychain every time you log on and then overwriting it with garbage if you accidentally click 'okay' instead of 'not now'. I find the three high-brightness blue LEDs annoying, you'll want to cover these with black tape if you have the HT801 in your eye-line or a bedroom.
The phone outlet is American RJ11 socket. If you are in the UK you will also need an RJ11-BT adaptor (not included) and if your phones are more than about 10 years old you'll need to get an adaptor that incorporates a 'ringer capacitor' or incoming calls won't make them ring.
Configuration is not for the faint hearted; there are hundreds of settings to mess with and important ones (e.g. related to security) are buried in dozens of trivial ones. Unless you are a serious VoIP geek, make sure that your VoIP provider / ISP supports this model and can give precise setup instructions or you're going to have to spend a lot of time with Google and specialist forums. If you don't understand how to secure your VoIP phone and account get support from someone who knows what they are doing.
Alan Buchanan
Posted 25/04/2024
Collected via Trustpilot
Looks good, connects automatically to the router. Still need to set up the VoIP user.
Carol Carney
Posted 12/04/2024
Collected via Trustpilot
Product arrived on time as promised. It was easy to install and is a working fine. It’s small which is good as doesn’t take up much space on desk. The online form to activate it was a bit complicated for a novice but our VoIP provider helped with that.
Happy customer
Posted 06/02/2024
Collected via Trustpilot
Did the job of moving my phone from traditional copper to fibre VOIP, so I can keep my old phone no. cheaply for the few people who still call it instead of the mobile.
Came in a white box with no instructions, but these are available online.
There are 100s of configuration options, but I just had to set about 10 for my needs. Worked first time after no. ported.
William
Posted 24/10/2023
Collected via Trustpilot
excellent product.
jusbriggs
Posted 09/05/2022
Collected via Trustpilot
Straight forward product to use and setup. Good price to keep an old analogue phone active on fibre
