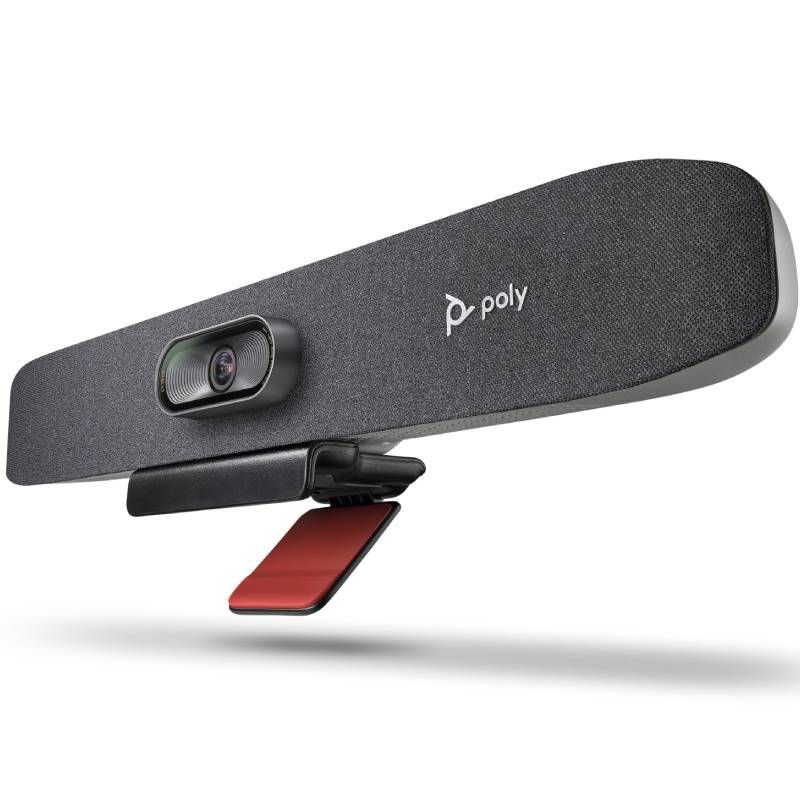

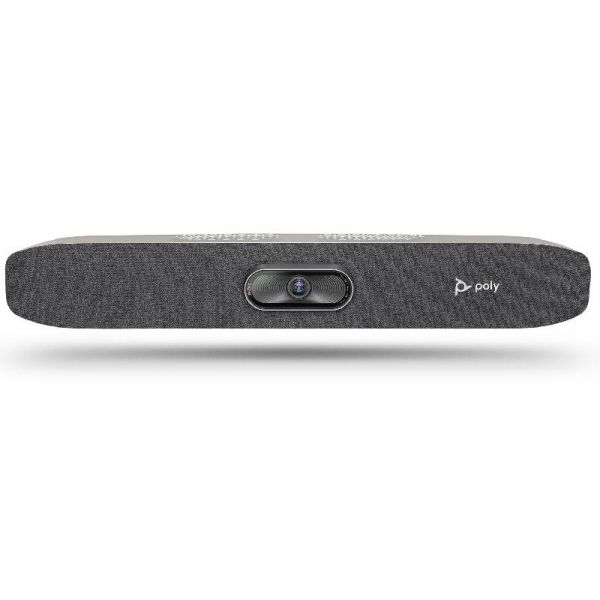

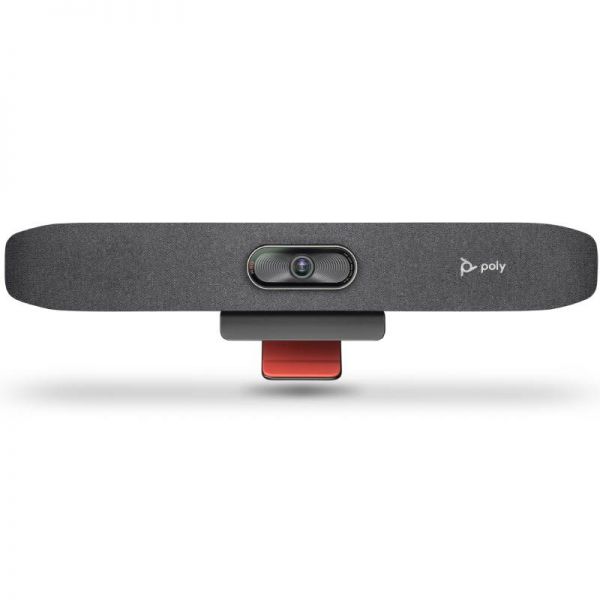

Poly Studio R30

Product description

All-in-one video bar powered by artificial intelligence

The new generation of videoconferencing systems

The latest addition to Poly's video conferencing lineup, the new Studio R30 makes your virtual meetings more dynamic, easy, and immersive than ever. Dedicated to huddle rooms, this all-in-one video bar works seamlessly with all existing video conferencing platforms, with certifications for Zoom Rooms and Microsoft Teams providing a seamless and optimal user experience across both.

Effortless installation

Easy to install, the new Studio R30 is a Plug & Play solution that only requires a USB connection to your PC or Mac to start enjoying it. Use the various available USB-A ports to expand its functionality with plug-ins, connect your mobile phone directly to the video bar via Bluetooth 4.2 connection, and position it according to your setup preferences with the built-in monitor clamp and stand compatibility wall mount and standard tripods.

Easily set up, manage updates, and personalize your devices with Poly Lens software. This platform has a remote adjustment interface that allows you to adjust your video conferencing camera in real-time and obtain usage information, with the available Wi-Fi connection that allows you to manage your Poly Studio at any time, even when it is not physically connected to your PC.

Ultra-high resolution

Powered by artificial intelligence, this new Poly camera enhances the remote meeting experience with more powerful audiovisual modules than ever. While the 4K UHD resolution camera provides outstanding video capture with true-to-life color reproduction, the built-in PTZ pan, tilt, and zoom capabilities add more depth to your virtual meetings. With a wide 120° field of view and powerful 5x Zoom, AI Poly Director technology brings unprecedented dynamism to your meetings with auto-framing and speaker-tracking features that let you juggle between shots.

Crystal clear audio

Capable of accurately capturing your voice thanks to its 3-microphone beamforming array, the new Poly video bar delivers exceptional audio clarity for your long-distance conversations. Harness the unprecedented power of the included Poly speakers to hear every detail of your conversation, and further enhance your listening experience with intelligent Poly Acoustic Clarity, Poly Acoustic Fence, and Poly NoiseBlock AI technologies.

These three modules provide advanced acoustic echo cancellation and automatic background noise cancellation for cleaner sound reproduction and delivery than ever before.

Features:

• Improved meeting experience: true color reproduction + low light compensation
• AI Controlled: Automatic Pan, Tilt, and Zoom movements (manually adjustable via the Poly Lens app)
• 120° wide field of view
• Electronic zoom up to 5x
• Poly DirectorAI: automatic framing of participants; speaker tracking and talk mode
• High-definition audio transmission: integrated 3-microphone beamforming array
• Poly Acoustic Clarity Technologies; Poly NoiseBlock AI and Poly Acoustic Fence: advanced acoustic echo suppression and background noise cancellation
• Microphone frequency response: 50 Hz - 14 kHz
• Speaker frequency response: 100 Hz - 20 kHz
• Transmitter Power: 84 dBSPL at 1000 Hz
• Built-in monitor clamp - adjustable video bar as needed
• LED indicator showing current call status and mute status
• All-in-one USB system for small conference rooms
• Certified video bar for Zoom Rooms and Microsoft Teams
• Compatible with all video conferencing platforms
• Operating system requirements: Windows 8.1/10/11; Mac OS 10.10 or later
• Poly Lens App: Deploy, Configure, Update, and Customize Your Devices
• A USB 3.0 port is required for 4K video support
• External power: 12V/3A
• Ports and interfaces: 1 USB-C port; 2 USB-A sockets; 1 power connector; Wi-Fi and Bluetooth 4.2
• Quick and easy connection: USB Plug & Play
• Dimensions (without monitor clamp): 445 x 68 x 81 mm
• Video bar weight (without monitor clamp): 737 g
• Operating temperature: 0° to 40°C
• 1 year limited manufacturer's warranty

Camera

• Ultra HD (4K 16:9, 2160p), Full HD (1080p), HD (720p)
• 120° DFOV, 110° HFOV
• True color and low light compensation
• Automatic meeting experience powered by Poly DirectorAI including speaker framing, presenter tracking, and conversation mode
• Electronic zoom up to 5x*
• Manual pan, tilt and zoom control through Poly Lens Desktop App

Audio

• Poly Acoustic Clarity technology with advanced acoustic echo cancellation and background noise suppression
• Poly NoiseBlockAI technology
• Poly Acoustic Fence technology
• Microphones: 3-element beamforming microphone array
  • 50 Hz to 14 kHz frequency response

Speaker

• 100 Hz to 20 kHz frequency response
• Output: 84 dBSPL @ 1000 Hz @ 1 meter at maximum volume

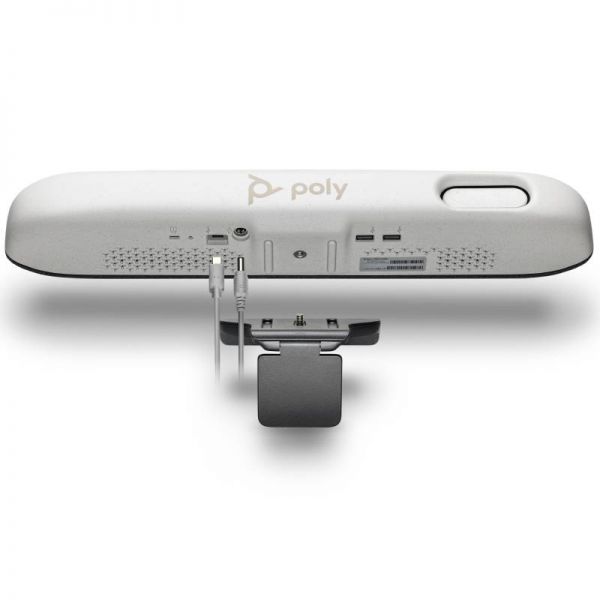

Interfaces

• 1x USB 3.0 Type-C port (with USB 2.0 compatibility)
• 2x USB 2.0 Type-A ports
• Power connector
• Kensington security lock
• 802.11ac Wi-Fi wireless networking for manageability; IEEE 802.11a/b/g/n compatible**
• Bluetooth® 4.2**

Power Requirements

• External DC power supply: 12V/3A

System Requirements

• Windows 8.1, 10, 11
• Mac OS 10.10 or higher
• USB 3.0 required for 4K video

Device Driver Support

• USB 2.0/3.0/3.1
• UVC/UAC Plug and Play Compatible

Compatibility

• Compatible with any application that supports standard USB audio and video drivers
• Certified for Zoom Rooms
• Microsoft Teams compatible

Manageability

• Cloud: Poly Lens service
• Local (Windows/Mac): Poly Lens Desktop App

Security

• 802.1x support**
• Certificate management

Other Features

• Adjustable monitor clamp
• Standard Tripod thread
• Inverted mounting option
• USB-A ports built-in for wireless headset adapter or other peripherals as USB hub
• Status LED indicates calling and mute state

Optional Accessories

• Bluetooth remote control**
• Wall mount

Warranty

• 1-year limited warranty included
• Poly+ enhanced support available

*Up to 5x zoom without tracking, and 4x zoom with auto tracking.

**Not available on no radio versions.

Alternative MPN: 2200-69390-102
Alternative EAN: 5033588057222
