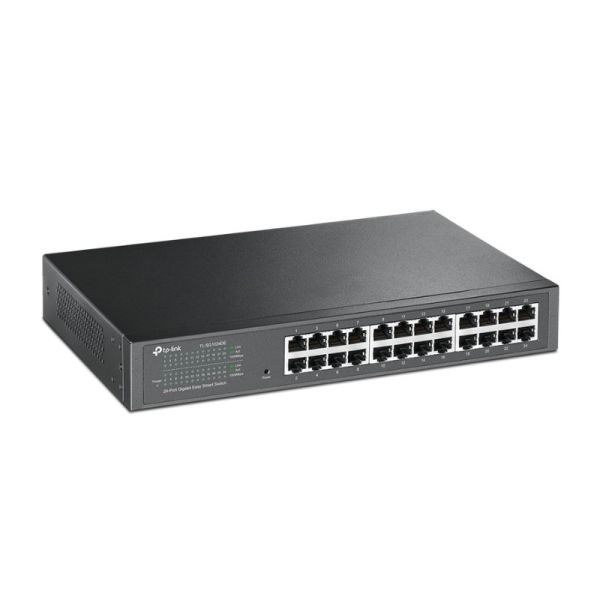

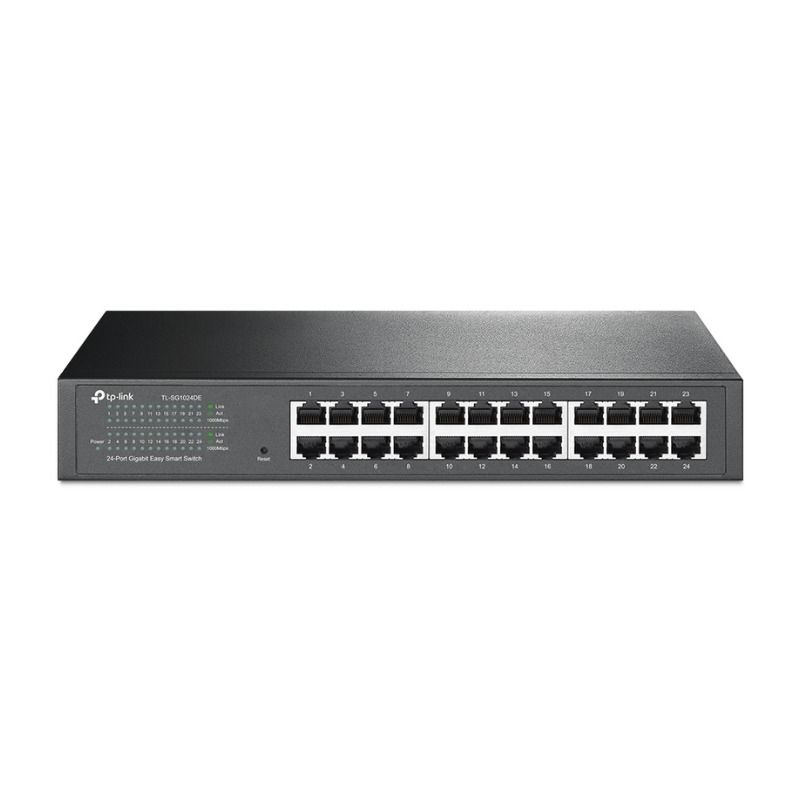

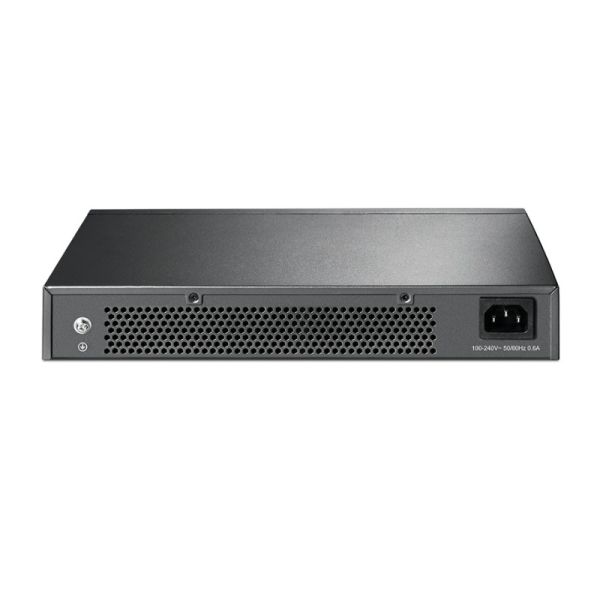

TP Link TL-SG1024DE Switch
Internal ref: TPSG1024DE // Manufacturer part #: TL-SG1024DE
24-Port Gigabit Ethernet switch with VLAN, QoS, and fanless design for noise-free operation
NEW
£98.99
-
£118.79
Incl. VAT
Bulk orders, request a quote now!
2 years of manufacturer warranty Subject to manufacturer conditions
Pay in 3 interest-free payments of £39.60
Show more
Key features
- 24 Gigabit RJ45 ports
- Fanless for silent operation
- Supports up to 32 VLANs
- 48 Gbps switching capacity
- Advanced QoS with 4 queues
- IGMP Snooping V1/V2/V3
- Rack mountable design
- Cable diagnostics support
In the box
- 1 x TL-SG1024DE
- 1 x Power Cord
- 1 x Resource CD
- 1 x Rackmount Kit
- 1 x Rubber Feet
- User Gude
Product description
TP Link TL-SG1024DE
Efficient and silent 24-port Gigabit Ethernet switch with VLAN, QoS, and diagnostics—ideal for expanding business networks.
Recommended Usage Environments
- Offices and corporate environments
- Network infrastructure setups
- Scalable for small to medium-sized businesses
- Integrates into existing Ethernet-based systems
- Ideal for quiet spaces due to fanless design | Bullet list
Key Functional Specifications
With 24 10/100/1000 Mbps RJ45 ports, this switch offers fast, reliable data transfer. It supports VLANs, QoS, IGMP Snooping, and static link aggregation. Its fanless design ensures silent operation, and its 48 Gbps switching capacity guarantees high performance. | Paragraph
Platform and Device Compatibility
Compatible with Microsoft® Windows® for running the utility. Connects with all Ethernet-compatible devices through standard RJ45 ports. | Paragraph
User Experience & Features
Enjoy silent, efficient network expansion with intuitive management tools. Features like storm control, cable diagnostics, and loop prevention enhance stability and performance. Rack mountable for easy integration. | Paragraph
Key Specifications
- Standards: IEEE 802.3i/u/ab/x/q/p
- Network Media: UTP/STP Cat 3–6, max. 100m
- Switching Capacity: 48Gbps
- Packet Forwarding Rate: 35.7Mpps
- MAC Address Table: 8K
- Packet Buffer Memory: 4.1Mbit
- Jumbo Frame: 10KB
- Transmission Method: Store-And-Forward
- VLAN Support: 32 VLANs (out of 4K IDs)
- Power Supply: 100-240VAC, 50/60Hz
- Max Power Consumption: 14.19W
- Max Heat Dissipation: 48.39 BTU/h
- Dimensions: 294 × 180 × 44 mm
- Mounting: Rack Mountable
- Certifications: FCC, CE, RoHS
- Environment: Operating 0–40°C; Storage -40–70°C
- Humidity: Operating 10–90%, Storage 5–90% non-condensing
Product Specs.
| Manufacturer part # | TL-SG1024DE |
|---|---|
| Warranty | 2 years |
| Type of networking product | Switch |
| Gigabit | With Gigabit |
| Gigabit Ports | 24 |
Frequently Asked Questions
Currently there are no questions for this product.
